Retention time

The moment a compound leaves the column tells you what it probably is — but probably is not enough on its own.

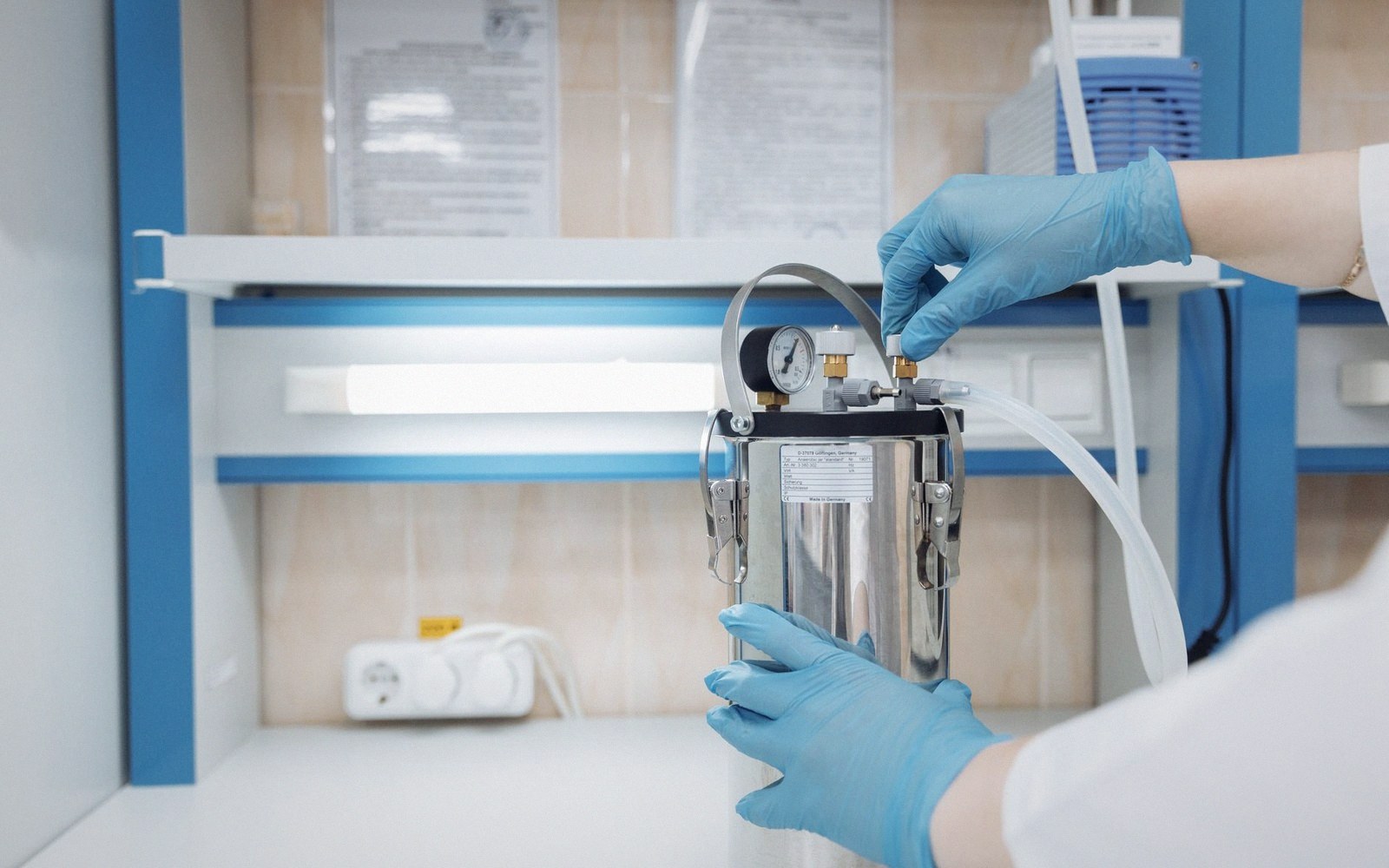

Gloved hands adjust tubing on a pressurized metal canister with a gauge in a lab — FIG. 01A time is an identity — a weak one, alone.Photo: Thirdman / Pexels

The clock starts at injection

Every compound injected onto a chromatographic column travels through it at a characteristic speed. That speed depends on how strongly the compound interacts with the stationary phase relative to the carrier gas or mobile phase. A compound that barely interacts sweeps through quickly; one that binds more firmly lingers. The result is a characteristic elapsed time — the retention time — measured from the moment of injection to the moment the detector registers a peak.

In practice, laboratories express this either as an absolute time in minutes or as a Kovats retention index, which anchors the value against a ladder of n-alkanes run under identical conditions. The index form travels better: it compensates for small differences in column length, carrier-gas flow rate and oven temperature between one instrument and another, making inter-laboratory comparison meaningful. An absolute retention time, by contrast, is only meaningful on the machine and column that produced it.

A chromatogram trace on an instrument screen — FIG. 02The clock identifies the peak; the spectrum confirms it. Alone, the clock can be fooled.Photo: Jess Loiterton / Pexels

Identification by retention time alone is a single-axis argument. Two compounds can share a retention time on a given column — they are said to co-elute. A different stationary phase will often separate them, which is why confirmation on a second column of different polarity is standard practice, and why most modern analytical systems couple the column directly to a mass spectrometer. The mass spectrum adds a second, far richer axis: a fragmentation fingerprint unique enough that a match against a reference library, combined with a matching retention time, constitutes a credible identification rather than a tentative one.

This matters enormously when a tube sample is processed from desorption through to a reported number. The retention time places the peak in time; the mass spectrum says what the peak is; integration decides how much of it there is. All three steps are in the chain, and a weakness in any one propagates into the final result. A misidentified peak — one compound labelled as another because retention times happened to coincide — produces a reported concentration that is real in arithmetic but wrong in chemistry.

Laboratories maintain retention-time reference libraries built from authentic standards: pure compounds of known identity injected under the same conditions as real samples. A peak is tentatively identified when its retention time falls within an acceptable window of the reference; it is confirmed when the mass spectrum also matches. The width of that acceptance window is a method parameter, and tighter windows reduce the chance of false matches at the cost of occasionally missing a genuine compound if conditions drift slightly.

A thermal desorption unit on a laboratory bench — FIG. 03Two compounds off the column in the same minute look like one; the second detector settles the argument.

The retention time is therefore the start of identification, not its conclusion.

Filed inSection 03 — The Bench

Kovats retention index	a dimensionless number anchoring a compound's elution position against a series of n-alkanes (C7, C8… Cn) run on the same column under the same conditions
Stationary phase	the coating inside the column that compounds interact with; different chemistries separate different compound classes
Co-elution	two or more compounds emerging at the same time, indistinguishable by retention time alone
Acceptance window	the permitted difference (in time or index units) between a sample peak and a reference standard before the match is rejected
